Sales Receipts/Payments

Xero:Import Xero Receipts/Payments and Allocate/Match to Invoices in Excel

All of the following functionality requires the Pro version of PostTrans.

Import Xero Sales Receipts/Payments

A more recent version, not shown on any of the screenshots/video below, has an additional tag in the Header section of the template to set the Process Type to "R" for Receipts or "P" for Payments.

PostTrans imports Sales Receipts, or Payments, in two different modes, each discussed below with demonstration videos:

  • Manual Allocation - Extract outstanding invoices, enter receipt info against them and import into Xero.
  • Automatic Allication Mode - Import receipts, and allocate against outstanding invoices, based on a matching unique Referance number or Invoice No.

1) Manual Allocation Mode

Match by:MANUAL, Manual Allocation

See example "Import and Match Sales Receipts/Payments"

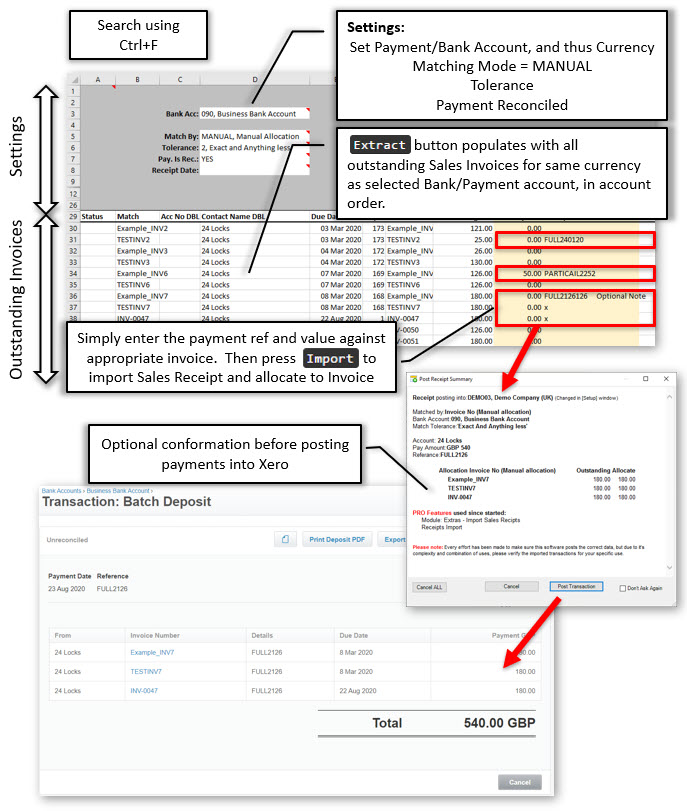

Pressing Extract button will populate the Excel sheet with all Outstanding Invoices in Xero. The template columns can be rearranged, additional functionality added or items removed to for fill your needs.

TLRcMatch column is populated with the Invoice number, and when Import is pressed the sheet is scanned for payment values. If this cell contains a value then, a Sales Receipt is imported for the value and entered reference. If just a reference is entered then the full value of the outstanding invoice is allocated, plus multiple invoices can be allocated to single payments. Please see the demo video below for more details.

Demonstration Video



   Import Xero Receipts/Payments and Allocate/Match to Invoices in Excel 1/2
  0:00 Open Example included with PostTrans for Xero
  1:10 Explanation of Template
  2:00 Bank Accounts and Currency
  3:20 Match by Options
  4:30 Extract Xero Outstanding Invoices
  5:00 Explanation of Xero Data Extracted
  5:30 How to enter Xero Payment Allocations
  6:45 Adding a Note against Xero Receipt
  7:55 Import Xero Payments and Allocate against Invoices
  9:00 Showing the Proof in Xero



To use the template, with Xero, install PostTrans. Download

Trial with Sage demo company. Purchase a month subscription for Live Sage Company. Price

Watch the On-line Training course on how to use and customise the templates.

2) Automatic Allocation Mode

Match by not set to:MANUAL, Manual Entry

See example "Import and Match Sales Receipts/Payments from CSV file"

In this mode, Xero Sales Receipts/Payment are imported into Xero, and are matched to Outstanding Sales Invoice by a matching value in TLRcMatch Column.   The value in the TLRcMatch can be matched by Invoice Number, Reference, or Oldest matching value on account ledger.

This is therefore ideal for users who want to import Invoice from an external system, and at a later date import the Sales Receipts, matched on a matching value on the original invoice.

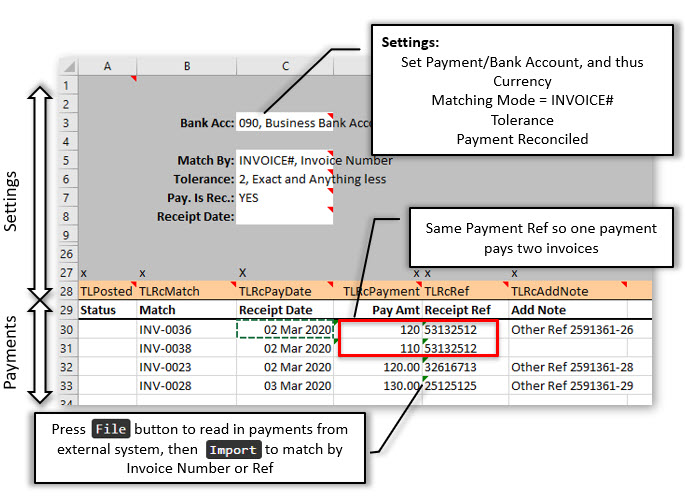

In the above example we can see we can allocate one payment to multiple invoices simply by using the same Payment Ref. See video below for demo.

Debtors List

To aid diagnosis, if a reference does not match PostTrans will optionally open a new sheet showing the outstanding transactions found in Xero and all references on those transactions. This can also be seen by pressing the Extract button on the Sales Receipt template.

Demonstration Video

The video shows how to use PostTrans Pro for Xero, to import Sales Receipts from within Excel, which relate to existing Sales Invoices in Xero. These are allocated to the invoice by a matching unique reference, which is in the Invoice data. In our example the Invoice Number.

This would be used, in a scenario where the Invoice data has originated from an external source, website or bespoke program. And at a later date the receipt information is generated by same program, which needs matching off against the invoices in the accounts.



   Import Xero Receipts/Payments and Allocate/Match to Invoices from CSV file in Excel 1/2
  0:00 Open Example included with PostTrans for Xero
  1:00 Explanation of Template
  1:30 Importing into Xero Example Invoices
  3:00 Reading CSV file using File button
  3:30 Changing options
  5:50 Optionally add a note to payments
  6:00 Allocate Payment in Xero from the CSV file
  7:00 Showing the proof in Xero
  7:40 Options in Setup - Turn off Conformation
  8:00 File import options



To use the template, with Xero, install PostTrans. Download

Trial with Sage demo company. Purchase a month subscription for Live Sage Company. Price

Watch the On-line Training course on how to use and customise the templates.

Requirements

Pro feature

The Invoice and Payment have to be in same currency

Cannot be over allocated

Option to only match if value agrees

Available Tags

Tag Name

Data Type

Description

Important Fields:

TLPosted

Text Req

Returns `POSTED` if Trans line has been posted and will be ignored if `POSTED` (required). Also reports errors/warnings in data row

Posting Settings:

THBankAcc^

Text Req, HeadOnly

Bank account or Account marked 'Enable Payments'. Only transactions of the same currency will be processed.
    In Cell Searching values in table ACCCODEPAYMENT

THMatchBy^

Text 60 Req, HeadOnly

Match by x when looking for invoice to allocate too in field TLMatch
        In Cell Searching values:Match BY
                  MANUAL, Manual Allocation
                  VALUE, Account Oldest Matching Value
                  REF, Reference
                  INVOICE#, Invoice Number

THProcessType^

Text 60 Req, HeadOnly

Process Receipts or Payments
        In Cell Searching values:Process Type
                  R, Receipts
                  P, Payments

THTolerance^

Integer Req, HeadOnly

Match Tolerance
        In Cell Searching values:Tolerance
                  1, Exact
                  2, Exact and Anything less

THPayIsRec

Yes/NoTF Req, HeadOnly

Payment is Reconciled.

THRcPayDate

Date HeadOnly

Date paid, if not specified on line (tag TLRcPayDate). If not specified then will use todays date

Receipts Lines:

TLRcRef

Text 18 Req

Set Referance of Receipt. Repeat Ref or 'X' to continue allocation to one recipt

TLRcMatch

Text 60 EOF Req

Use this value to search for matching Invoice, allocate payment to this matched invoice

TLRcPayment

Currency Req

Payment Amount, zeros are ignored.

TLRcDetails

Text 60

Details. If not specified will be `Sales Receipts`

TLRcPayDate

Date

Date paid, blank defaults to today

TLRcCode

Text 60

Code (NZ only)

TLRcParticulars

Text 60

Particulars (NZ only)

TLRcAddNote

Text 100

Add note to Payment

Contact Info:

TLCoAccNo

Text 8

Contact Account Number

TLCoName

Text 60

Contact Name

Ready Only Tags:

TLInvOut

Double Read

When used in Manual Mode, will be populated with Outstanding amount on Extract

TLInvDate

Date Read

Date of invoice

TLInvDateDue

Date Read

When used in Manual Mode, will be populated with Due Date on Extract

TLInvDateExp

Date Read

When used in Manual Mode, will be populated with Expected Date on Extract

TLInvCredit

Double Read

When used in Manual Mode, will be populated with Credited amount on Extract

TLInvGross

Double Read

When used in Manual Mode, will be populated with Gross amount on Extract

TLInvTax

Double Read

When used in Manual Mode, will be populated with Tax amount on Extract

TLInvCur

Text 3 Read

Currency Number

TLInvNo

Text 20 Read

Reference2

TLInvRef

Text 20 Read

Reference

Header:Before Posting:

THBefDisplayMess

Text 60 HeadOnly

If contains value, then this text is displayed, and import cannot take place until this text if clear. Thus you can your own formula, macro or VBA code to stop import until a certain condition.
Validating Transaction before posting

THBefDisplayMessYN

Text 60 HeadOnly

If contains value, then this text is displayed. Asks Yes/No to continue
Validating Transaction before posting

Header - After Posting:

THAftProcessSheet

Text 60 HeadOnly Pro

After posting this sheet, switch to work book with this name, and post that. Allows back to back purchase orders, or multiple company transfers. PRO
Posting multiple sheets

THAftSwitchSheet

Text 60 HeadOnly Pro

After posting this sheet, switch to work book with this name PRO
Posting multiple sheets

Header - After Save:

THAftSavePATH

Text 60 HeadOnly Read Pro

If THAftSavePATH and THAftSaveFilename specified, will save as PATH + ‘\YYYMM\’ + Filename + "_0000.xls". YYYMM can be overridden with value in THSaveSubDirectory cell.
more about saving

THAftSaveSubDir

Text 60 HeadOnly Read Pro

See THAftSavePATH
more about saving

THAftSaveFilename

Text 60 HeadOnly Read Pro

See THAftSavePATH. Example ‘ABAP01’ will save as ABAP01_0001.xls.
more about saving

Import File:

THImportFullName

Text 500 HeadOnly

Full PATH and Filename of the file just imported using the Import button. This is required if you set the directory to move file after posting transaction.
File Import instructions

THImportFileName

Text 500 HeadOnly

Filename of the file just imported using the Import button
File Import instructions


Req = Field is required    EOF = End of file, Stop when no more values

Head  A header tag can be used in header section, before row 30, of the transaction template.  Or in the rows data of data, below row 30, of the template like a traditional CSV importer.

With data type Yes/No fields, if cell starts with 'y' or 'Y' is taken as TRUE

Where ^ denotes a In Cell Code Search, delete ^ at end of tag, to turn off code search

All Text fields are trimmed (spaces before) by default. Add ' to the end of the tag name to stop this.

Related Example Sheets

You can easily access the example sheets by pressing Help button, on the PostTrans Toolbar to access these related examples, or downloading them from the links below.

To use the template, with Sage 50, install PostTrans. Download
Trial with Sage demo company. Purchase a month subscription for Live Sage Company. Price
Watch the On-line Training course on how to use and customise the templates.



Import and Match Sales Receipts/Payments



Import and Match Sales Receipts/Payments from CSV file
